Self Retracting Lifelines (SRLs)

Self Retracting Lifelines (SRLs)


Product Overview

Self-retracting lifelines (SRLs) are critical safety devices commonly used in industries where workers are exposed to fall hazards, such as construction, mining, and maintenance. They provide a more dynamic and flexible means of fall protection compared to traditional lanyards.

An SRL consists of a retractable cable or webbing wound on a spring-loaded drum inside a durable housing. One end connects to the worker's harness, and the other end attaches to an anchor point. Unlike static lanyards, SRLs automatically retract excess line as the worker moves, maintaining tension in the line. If a fall occurs, the SRL locks up within seconds, limiting the fall distance and reducing the impact forces on the wearer's body. This rapid braking action is crucial in preventing serious injuries.

SRLs offer several advantages, including increased mobility, reduced fall distance, and ease of use. They are available in various configurations, such as personal SRLs for individual use and larger ones designed for overhead horizontal lifelines or vertical climbing systems. Regular inspection, maintenance, and adherence to safety guidelines are essential to ensure the reliability and effectiveness of self-retracting lifelines in safeguarding workers at height.

Whether your application requires single or twin-leg configurations, mounting to an overhead anchor, leading edge applications or for connection directly to the harness, there are numerous models available for nearly every application. Our shared goal is to bring you home safely at the end of the workday and we want to make sure you’re comfortable so you can get the job done.

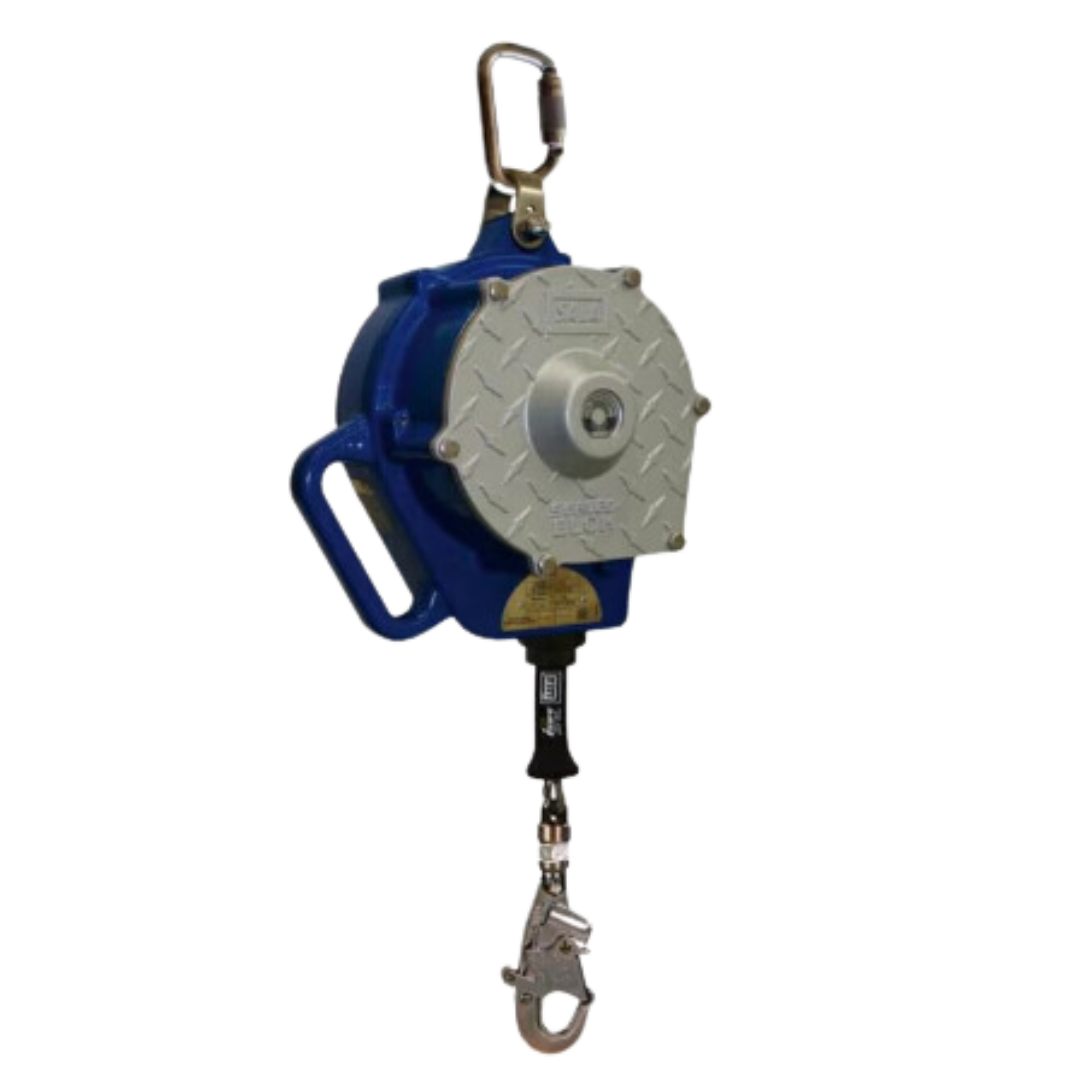

3M™ DBI-SALA® Sealed-Blok™ Self Retracting Lifeline, 3400902C, 50 ft (15 m) stainless steel cable

Available in multiple configurations, lifeline lengths, and material types. Critical SRL components sealed from environmental exposure. Swiveling self-locking snap hook with impact indicator

Single Pad - Heavy Duty (87)

Highlights


  • Available in multiple configurations, lifeline lengths, and material types
  • Critical SRL components sealed from environmental exposure
  • Swiveling self-locking snap hook with impact indicator
  • Pivoting anchorage connector loop
  • Durable Construction
  • Galvanized & stainless steel cable options
  • Quick activating speed-sensing locking system
  • Equipped with an integrated carrying handle to assist in transporting the SRL to job sites
  • IP 69K ingress protection rating
  • Integrated fall arrest energy dissipation system
  • Emergency retrieval system available on some models
  • RFID tag is embedded in polyurethane bumper

The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline (SRL) incorporates a patented concept that helps separate components, such as the motor spring and brake, from foreign elements such as grease, moisture, and dirt. The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline is IP-69K rated to provide protection against ingress of dust, high tempeatures, and high pressure water, for use in extreme environmental conditions. These lifelines are available in Overhead, Retrieval, and RSQ / Rescue SRL configurations.

When it comes to confined space and entry rescue, the 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline (SRL) is essential; it operates quickly and efficiently in the toughest environments. The 3M™ DBI-SALA® Sealed-Blok™ Self-Retracting Lifeline is one of the most critical parts of a rescue system as it provides the means to retrieve an incapacitated worker to safety. The SRL’s lifeline is designed to extend as the user moves away and retracts automatically, enabling the user to move around within a recommended working area at normal speeds. Should a fall occur, the SRL’s internal centrifugal energy absorption system will activate, stopping the fall and reducing the forces imposed on the user to safe levels.

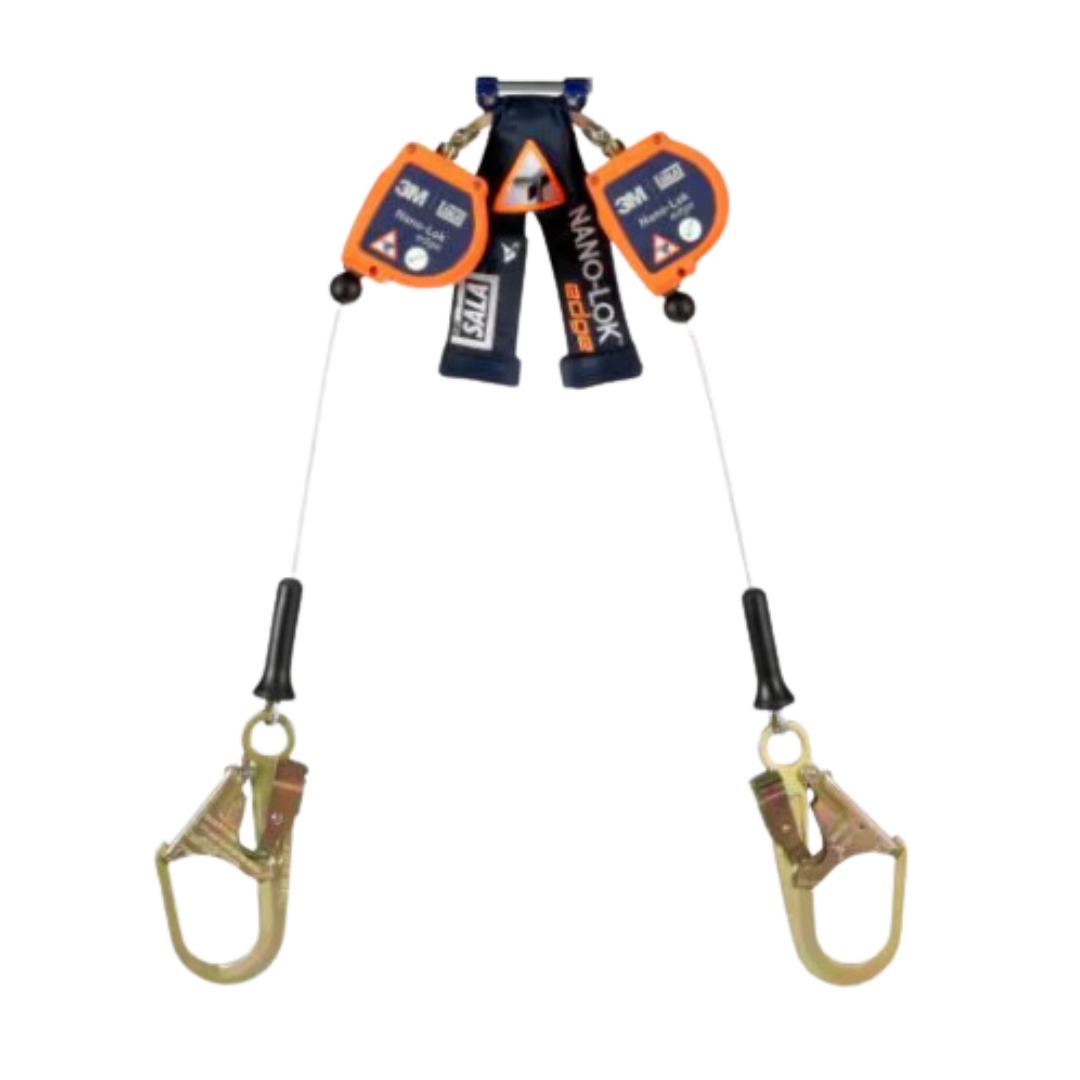

3M™ DBI-SALA® Nano-Lok™ Edge Twin-Leg Self Retracting Lifeline, 3500253, cable, quick connect, 8 ft (2.4 m) web

Designed for foot-level tie-off and leading edge applications. Compact Design. Quick activating speed sensing brake system

Single Pad - Heavy Duty (88)

Highlights


  • Designed for foot-level tie-off and leading edge applications
  • Compact Design
  • Quick activating speed sensing brake system
  • Durable thermoplastic housing
  • Built-in connector for direct attachment to harness
  • High capacity external energy absorber and impact indicator
  • RFID equipped and capatible with inventory management system
  • Available in multiple styles and configurations

3M™ DBI-SALA® Nano-Lok™ Edge Self-Retracting Lifeline (SRL) is designed for ANSI Class 2 foot-level tie-off and leading edge applications - often found in construction. The SRL is ergonomically designed for ease of use and is ideal for direct connection to most harnesses.

3M™ DBI-SALA® Nano-Lok™ Edge Self-Retracting Lifeline's compact design is easily worn on the user's back and stays out of the way; it can also be used as a lanyard replacement. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from to suit a variety of applications. 3M™ DBI-SALA® Nano-Lok™ Edge Self-Retracting Lifeline is designed to lock quickly stopping a fall within inches - providing more protection at low heights. In addition, tension is maintained on the lifeline, which helps reduce potential dragging and trip falls.

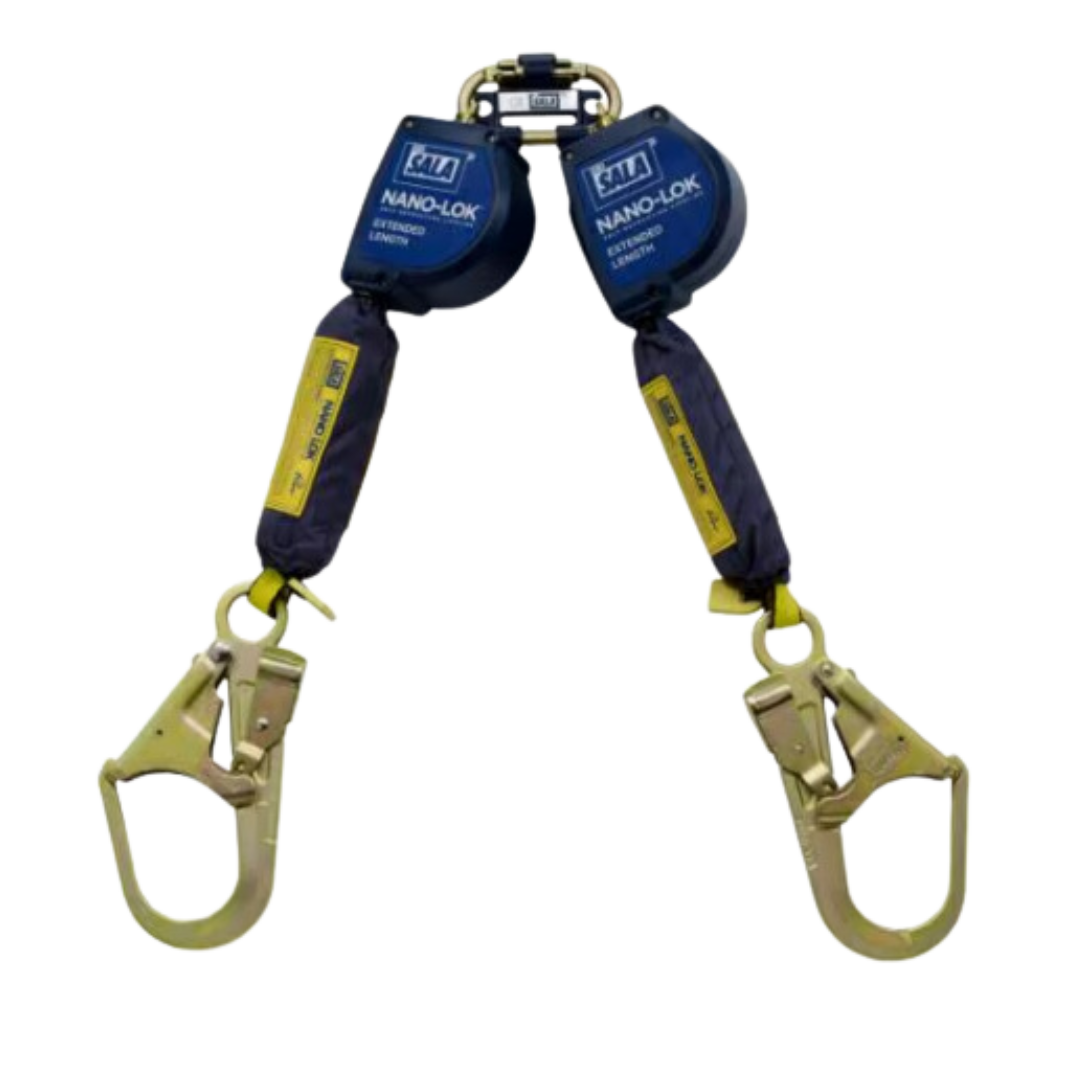

3M™ DBI-SALA® Nano-Lok™ Extended Length Twin-Leg Self Retracting Lifeline, 3101634, quick connect, 9 ft (2.74 m) web

Impact-resistant housing made of tough thermoplastic housing designed to help withstand demanding worksites. Speed-sensing brake system provides as low as 6 ft. (2m) of required fall clearance. Swiveling anchorage loop limits lifeline twisting for smooth operation

Single Pad - Heavy Duty (89)

Highlights


  • Impact-resistant housing made of tough thermoplastic housing designed to help withstand demanding worksites
  • Speed-sensing brake system provides as low as 6 ft. (2m) of required fall clearance
  • Swiveling anchorage loop limits lifeline twisting for smooth operation
  • Impact indicator provides a visual alert that the SRL has been involved in a fall
  • Galvanized steel cable lifeline
  • High-capacity external energy absorber designed for users (and tools) up to 420 lbs. (190kg)

3M™ DBI-SALA® Nano-Lok™ Extended Length Self-Retracting Lifelines are going to great lengths to help improve fall protection.  Available in 9 ft. (2.75 m), 11 ft. (3.35 m), 15 ft. (4.57 m) and 20 ft. (6 m) lengths, the family of Nano-Lok SRLs combines fall protection with ease-of-use and comfort for even more applications. Speed sensing brake activation system provides protection at low heights. Tension is always kept on the lifeline, which helps reduce dragging, snapping and trip falls. Durable nitrile energy absorber is a smaller design and last four times longer.

3M™ DBI-SALA® Nano-Lok™ Extended Length Self-Retracting Lifeline is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are dozens of models to choose from to suit almost any application. Nano-Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.
