In-Ground Lifts

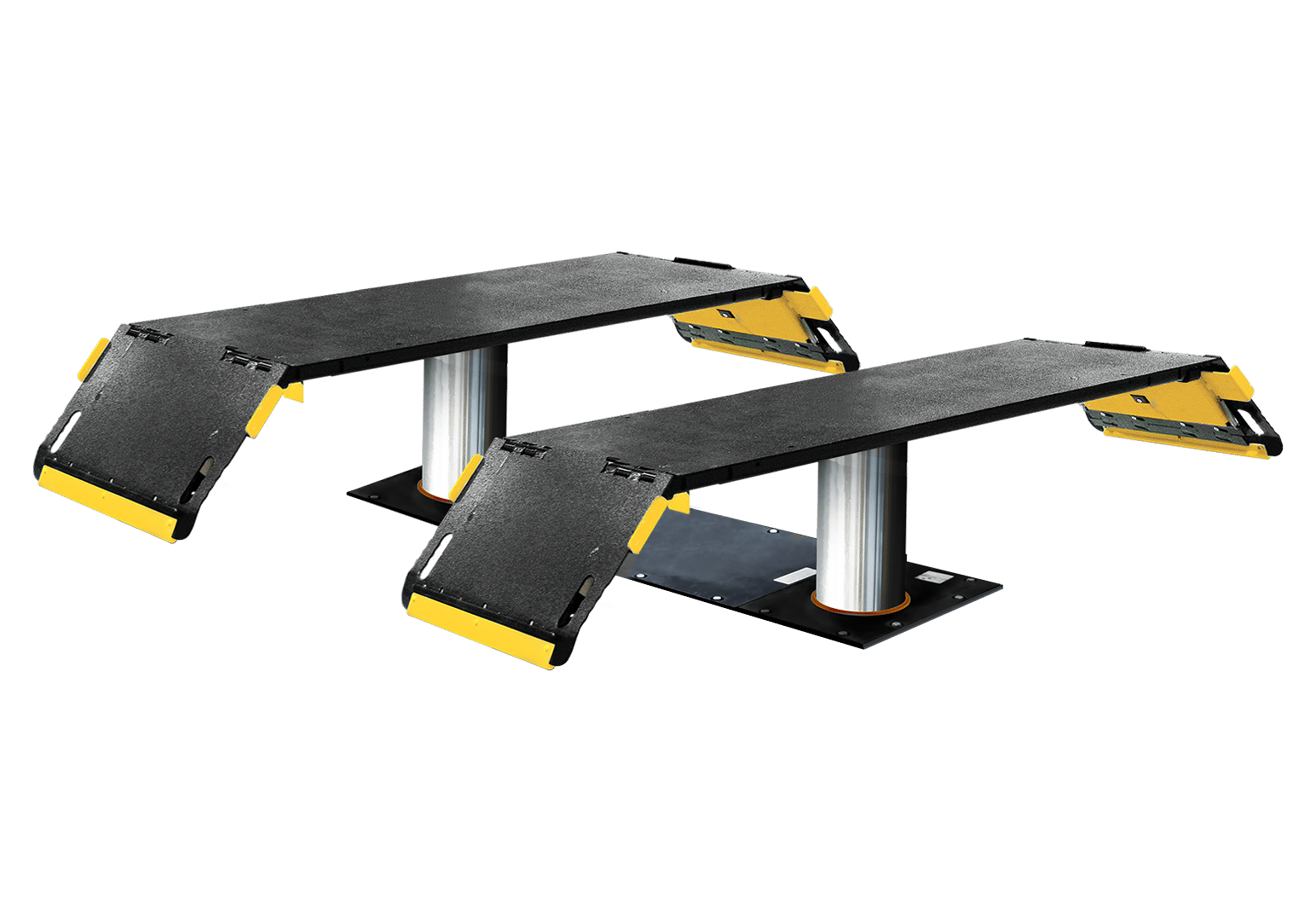

9K Inground Drive-On Pad Lift
Overview
Challenger’s 9,000-lb. drive-on-style pad aids in quick vehicle spotting in express bays. This add-on configuration provides the quickest vehicle loading, reducing frustration in shops.
ALI/ETL certified.
Features & Benefits
- 9,000 lb. lift capacity
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3″, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates the risk of hydraulic fluid seeping into the ground
- QuickCycle™ models reduce vehicle travel time by 30 percent
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters provides long-lasting durability

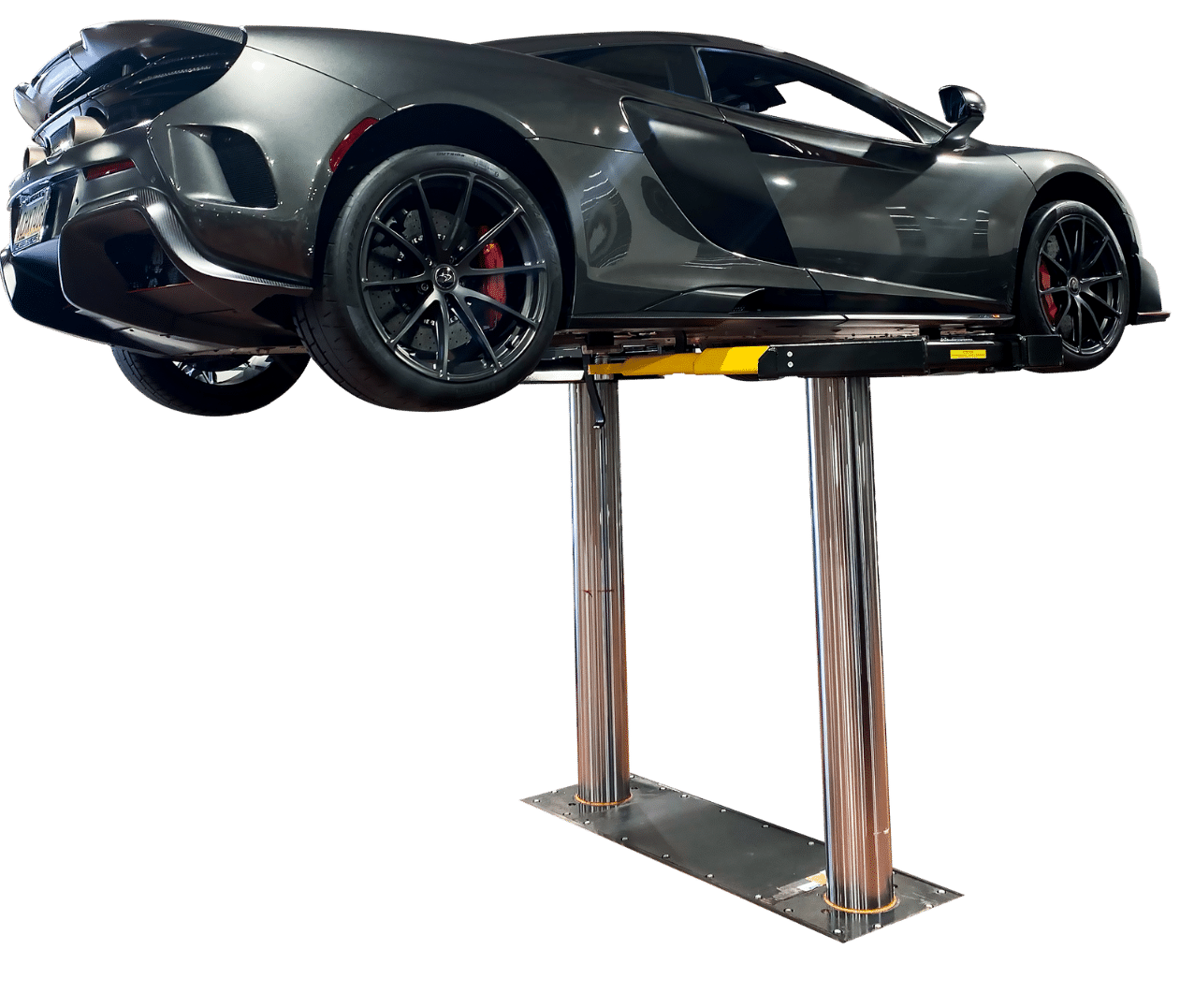

10K Standard Inground Lift
Overview
Challenger’s electric hydraulic cassette-style 10,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1020 has 3-stage front and rear arms or a fixed drive-on pad. We added Quick Cycle™ models that can rise in just 27 seconds and lower in only 17 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift.
ALI/ETL certified.
Features & Benefits
- 10,000 lb. lift capacity
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
- Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
- Quick Cycle™ models reduce vehicle travel time by 30 percent
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability

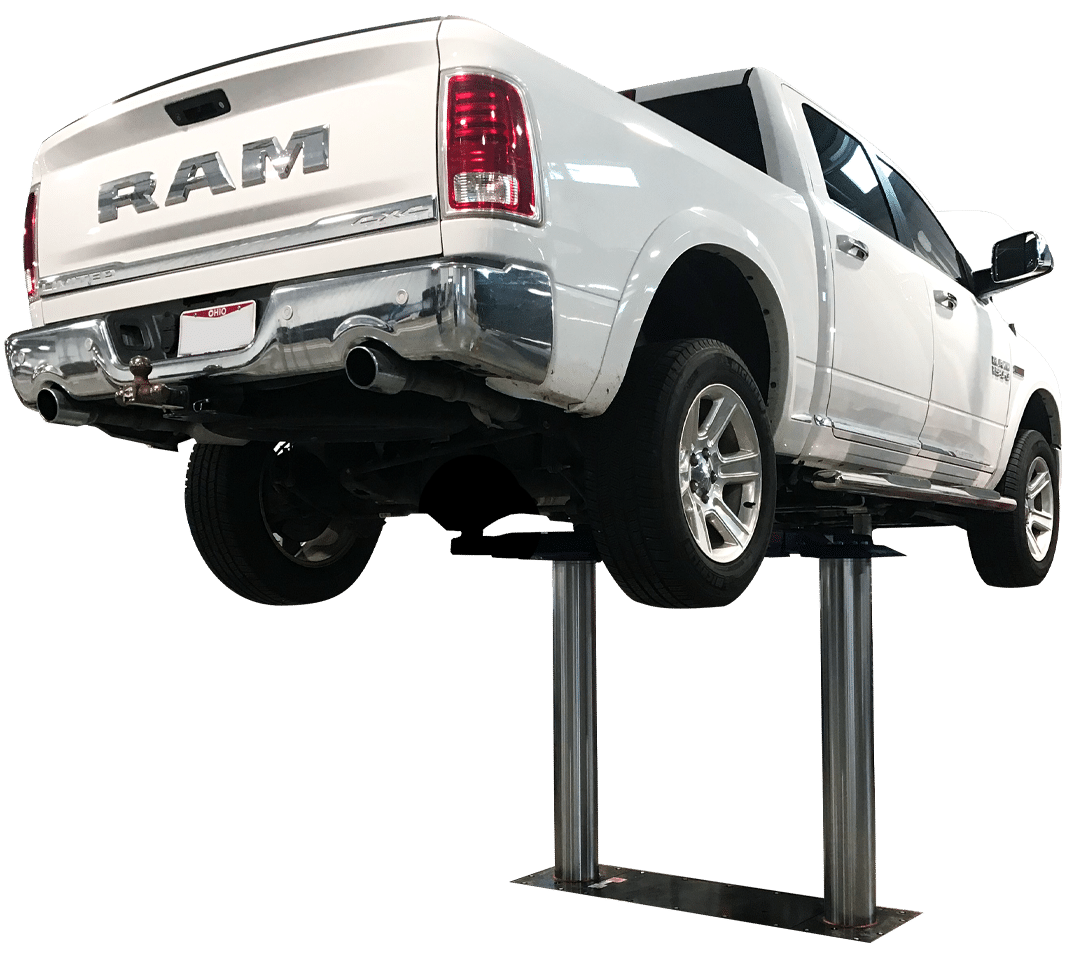

12K Heavy-Duty Inground Lift
Overview
Challenger’s electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We’ve also added our time-tested productivity tools, including Quick Cycle Technology and Bench Mount Controls to boost your efficiency.
Features & Benefits
- 12,000 lb. lift capacity
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3? allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability
