Traffic/Impact Doors

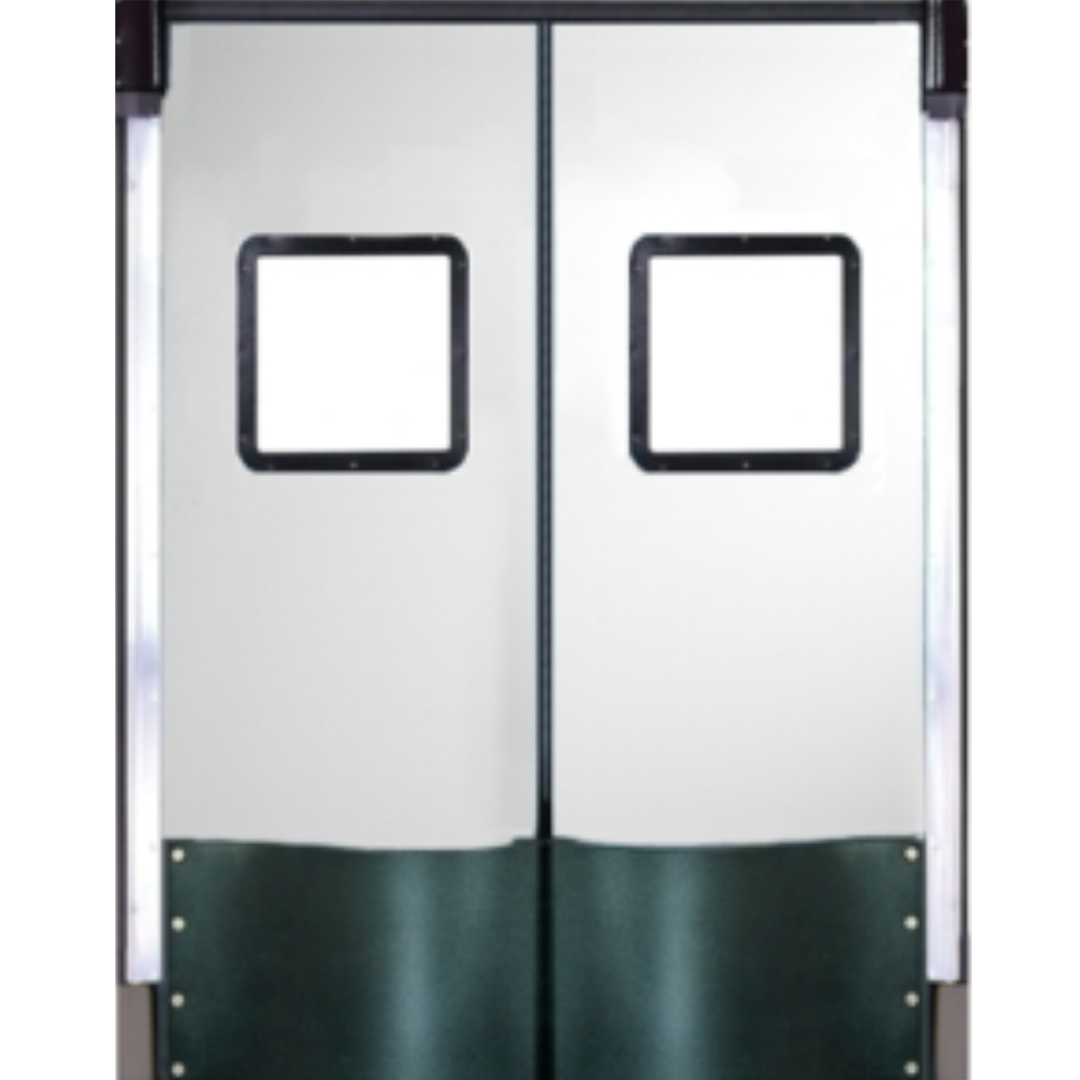

Traffic Door Proline 400i
Overview
Proline doors are designed for strength and durability in abusive applications. They provide visual separation, sound attenuation and thermal separation. The doors can be manufactured to fit virtually any size opening. The door is designed to comply with all USDA sanitation requirements and is insulated.
Features
The 400i is constructed with a 1.5” thick composite wood core with foam inserts and either a .032” thick tempered aluminum alloy panel with a satin anodized finish or a full-length stainless steel panel on both sides.
Black powder-coated aluminum spine provides additional reinforcement to enhance the strength of the door.
Full perimeter replaceable gaskets are provided with the door and stand up to heavy traffic while providing a positive seal for thermal separation.
Patented v-cam hinging system has a 240° hinge that swings 120° in each direction, wide enough to allow the entire door and bumper to completely clear the opening.
Standard 10" x 16" double pane clear polycarbonate with ABS frame. Additional options available.
OPTIONS
- Windows
- Bumpers
- Hinge Guard
- Impact Plate (Stainless Steel, Galvanized Steel, or ABS)

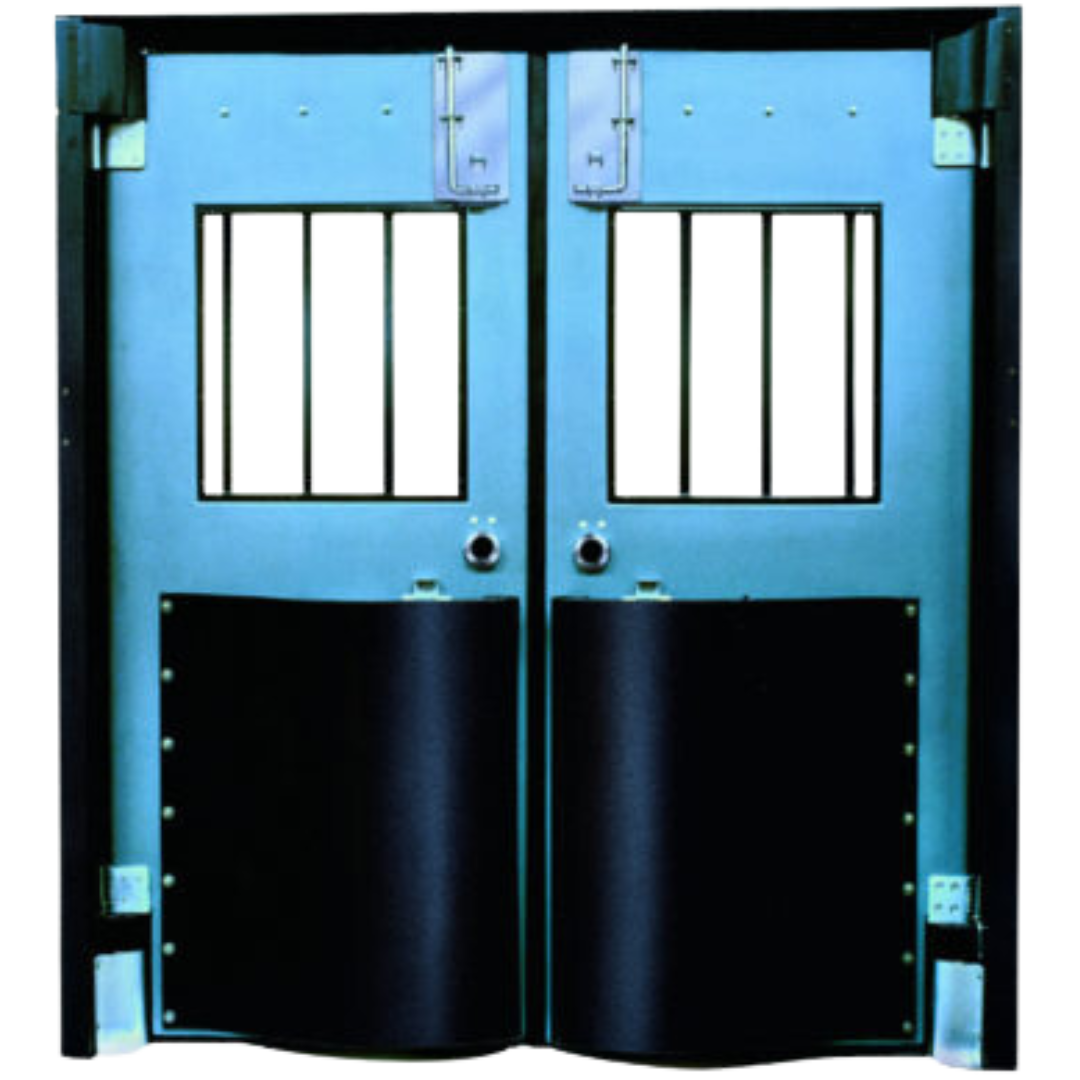

Chase Durulite 200 Postal Door
Overview
The Durulite Model 200 Postal Series door is designed to meet the stringent security requirements of the United States Postal Service and complies with all RE-5 security guidelines.
Features
Door Panel - The ¼” thick monolithically formed outer shell is rotationally molded from Cross-Linked High Density Polyethylene (X-LINK HDPE). This material is five times stronger than ABS and offers maximum durability and impact resistance. The Cross-Linked High Density Polyethylene material maintains its properties to –40°F. Overall panel thickness is 1-7/8”.
Insulated Core – The door panel core is foamed in place CFC-Free urethane foam which permanently bonds to the inner surface of the door panel. This ensures that the foam will not break down when the door is impacted. The CFC-Free foam core provides excellent insulation (R Factor of 10.83) and sound attenuation properties.
Internal Reinforcement – Upper V-Cam Hinge System, lower hinge pillow block construction with UHMW sleeve and solid cast aluminum adapter.
High Density Polyethylene Spring Bumpers - 38” High Density Polyethylene (HDPE) spring bumpers protect the door panel from impact. These bumpers feature a 4” teardrop projection that compresses to absorb the energy created by impact from carts and man-ridden vehicles. The bumper then “springs” back to its original position.
Full Perimeter Gasketing - Durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field. Frame mounted header seals are supplied to seal the top of the door.
Upper Hinge System - Solid cast aluminum Upper Hinge Post and a zinc-plated ductile iron V-Cam with UHMW sleeve for smooth, reliable operation. The roller assembly features a permanently lubricated needle bearing for durability and minimal maintenance.
Bottom Hinge - Solid cast aluminum lower hinge post rides in heavy duty lower pillow block with UHMW sleeve for smooth, reliable operation. The lower hinge post can accommodate our optional spring assist for high draft applications.
- Upper and Lower Canes Bolts
- 2” Lock Sleeve
- Double glazed 1/8” thick recessed polycarbonate windows with three internal steel security bars spaced on 7” centers
- Tamper Resistant Fasteners

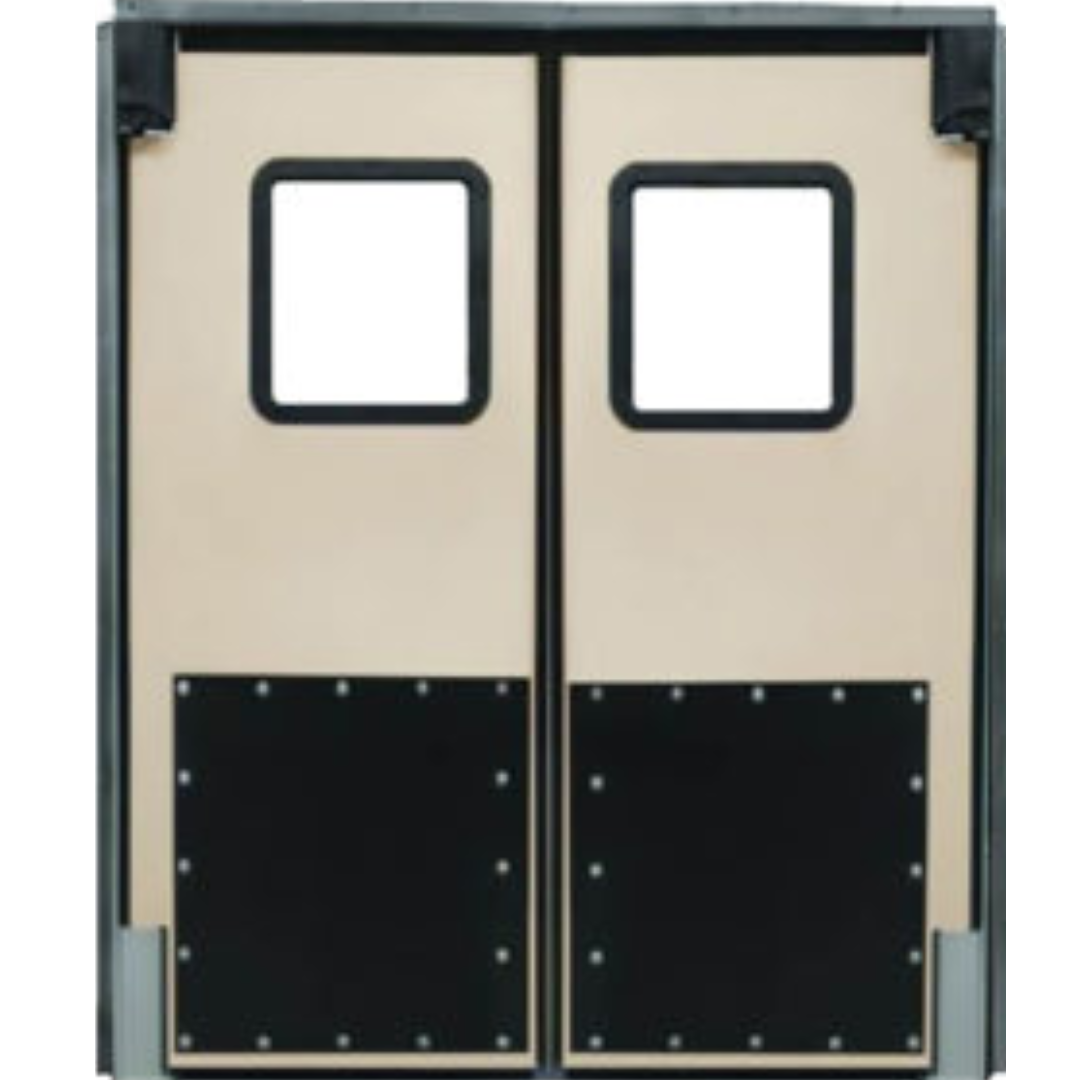

Durulite Retailer Door
Overview
Durulite Retailer doors are constructed with rotationally molded polyethylene, making them extremely durable and capable of withstanding the wear and tear associated with sales-to-back room and walk-in cooler openings in high volume retail establishments. Known for their long-term value, they are ideal for use in supermarkets, retail establishments, institutions, restaurants, and foodservice operations as they provide a visual separation, sound barrier, and thermal separation. The door is designed to comply with all USDA sanitation requirements and is NSF certified.
Features
It is lightweight, opens easily and closes every time. Overall panel thickness is 1-1/2", skin thickness is 1/8" and the door can be sized up to a 8' x 10'. Rotationally molded polyethylene outer skin retains its properties to –40°F.
Single:
- Width: Min 18” Max 48”
- Height: Min 48” Max 120”
Pair:
- Width: Min 36” Max 96”
- Height: Min 48” Max 120”
High density, Non-CFC urethane core is foamed-in-place to ensure a tenacious bond between the core and outer skin, providing sound abatement and excellent thermal separation with an R factor of 9.86.
A 1" diameter hinge post is molded in the door and runs the full length of the panel. The hinge post sets into the jamb guard for structural stability and strength. The leading edge is reinforced with an aluminum extrusion adding additional structural support.
Replaceable perimeter edge gasketing is used to reduce energy flow between environments. The door comes standard with a gasket along the leading, back and bottom edges. Partially gasket doors are available.
UPPER HINGE
Patented v-cam hinge system can travel up to 120 degree in each direction.
LOWER HINGE ASSEMBLY
The lower hinge assembly holds the lower hinge post in position, preventing horizontal movement of the door. It also serves as a lower hinge guard, protecting the lower hinge post from impact damage
Durulite Industrial Door
Overview
The Durulite industrial door is the toughest traffic door in the industry. It is known for its ruggedness, ease of maintenance, and long service life. This versatile door is capable of filling the needs of a wide variety of applications. From the daily rigors of forklift traffic to refrigerated applications, to USDA and washdown applications.
The strength of the Durulite industrial is due to its rotationally molded polyethylene construction. Standard tests for impact resistance indicate that rotationally molded polyethylene is five times more puncture-resistant and three times more flexible than ABS material. The corrosion-resistant panel is ideal for washdown applications as it has no gaps or joint seams.
The industrial door is lightweight, weighing only 3.5 pounds per square foot, easy to open, operates smoothly and allows for safe passage of personnel and damage free equipment. The overall panel thickness is 1-7/8", the skin thickness is 1/4" thick and the door can be sized up to a 10' x 10'. Rotationally molded polyethylene outer skin retains it properties to –40°F.
The foamed-in-place Non-CFC urethane core (permanently bonded to the outer surface) does not break down when impacted, provides noise control and excellent insulation with an R factor of 10.83.
The leading and back edge of door are internally reinforced with tubular steel to strengthen the door panel.
GASKETING
USDA accepted durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field.
UPPER HINGE
Double-acting v-cam hinging system operates smoothly and is virtually maintenance free with its permanently lubricated needle bearing roller assembly. Optional stainless steel hinge is available.
BOTTOM HINGE
For additional strength and durability the hinge is designed with pillow block constructed of zinc plated ductile iron (stainless steel is optional) with a UHMW sleeve and solid cast aluminum lower hinge adapter. Plus the lower hinge adapter has a provision for mounting an optinal spring assist.

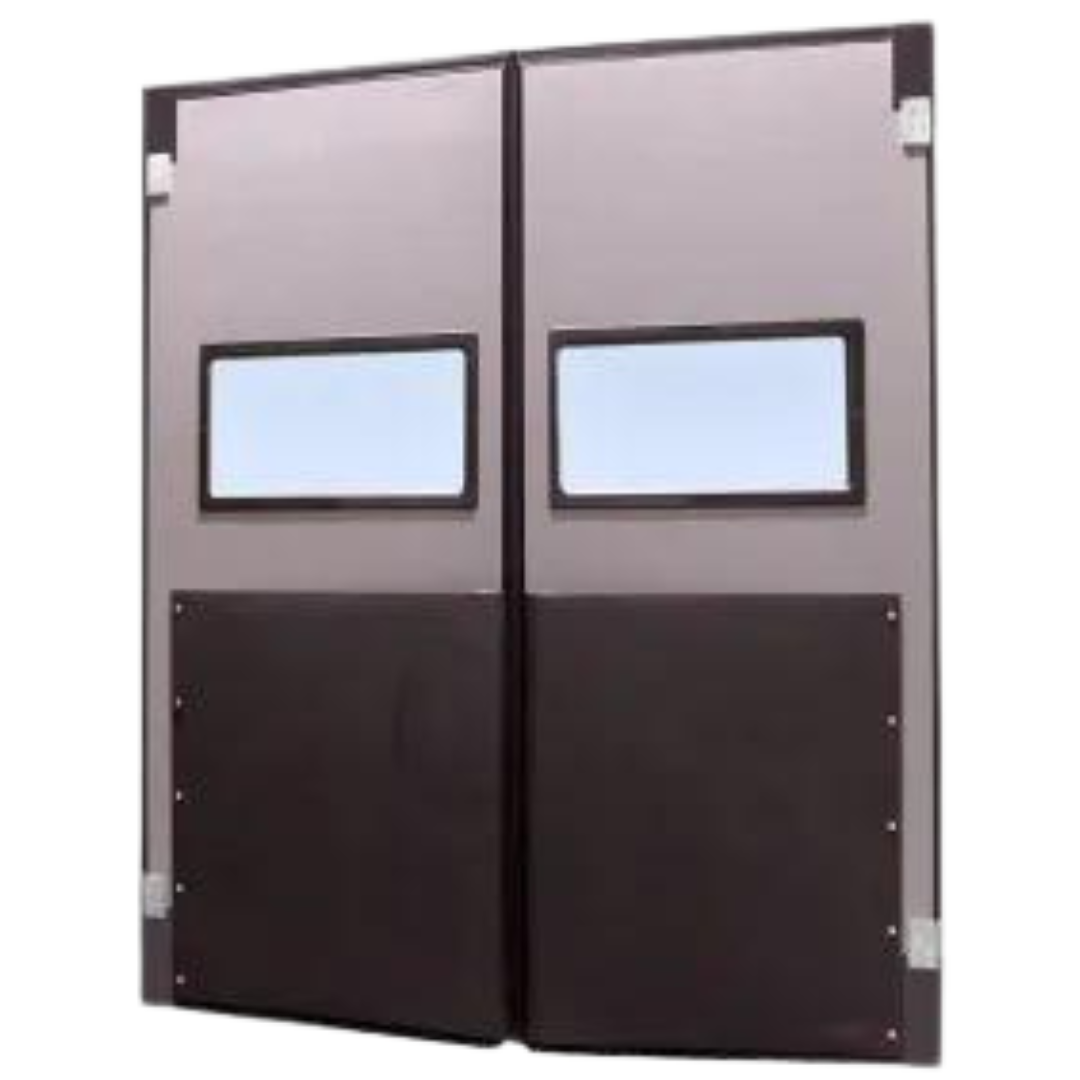

SERIES 4300 Industrial Traffic Door
Overview
Designed for door openings up to 8’0”W x 10”0”H where privacy into restricted areas, temperature control, and appearance are major considerations. The rugged v-cam hardware is designed to be virtually maintenance free. Adjustable spring to compensate for some negative pressure. The 1-3/4” thick insulated panels have the strength to withstand heavy push cart, and light motorized pallet traffic while being light weight to service pedestrian traffic. Large vision areas provide the maximum personnel safety. Available in a large selections of colours, the Series 4300 impact traffic doors are ideally suited for supermarkets, retail stores, restaurants, pharmacies, convenience stores, processing plants, and refrigerated applications. Foam injected insulation and full gasketing provide excellent environmental control and reduce energy costs.
