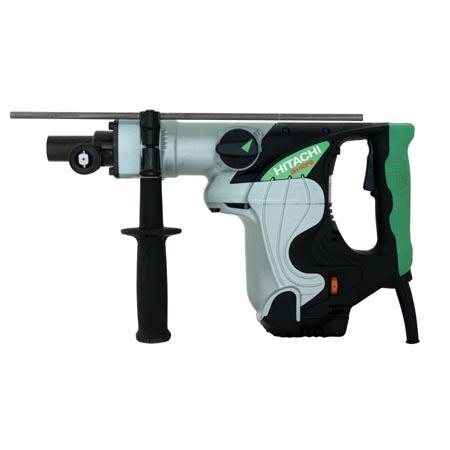

Metabo (Hitachi) DH40FR

DH40FR 1-9/16" Spline Shank Rotary Hammer

• 7.4 ft-lbs of impact energy, delivering high-speed drilling and forcible chipping with low vibration and noise level
• 9.2 Amp motor, increases productivity
• 2-modes of operation, hammer & drill and  hammer only for flexibility within a range of applications
• Built-in electronic control circuit, keeps speed constant even as load varies
• Needle-pin slip clutch
• Soft, non-slip Elastomer grip, absorbs vibration and improves comfort and handling
• Revolutionary IDI (Internal Double Insulation) technology, incorporated into the housing of the tool greatly improves reliability and extends the tool life
• Removable side handle with depth gauge, improves control and ensures accurate drilling depth

Includes

• Depth Rod (971786)
• Side Handle (313078)
• Plastic Case (322152)
• 3 Dust Covers (993245)
• Hex Wrenches (944458, 943277, 944459)
• Hammer Grease A 1oz Tube (981840

Specifications

Shank	Spline
Chuck Size	1-1/2"
No-Load Speed	380rpm
Impact Rate	2800bpm
Impact Energy	5.2 ft-lbs
Amps	8
Capacity: Wood	N/A
Capacity: Steel	N/A
Capacity: Drill Bit	1-1/2"
Capacity: Core Bit	4-1/8"
Modes of Operation	Hammer/Hammer & Drill
Switch	Electronic
Handle Type	D
Power Input	870W
Tool Length	17-15/16"
Tool Weight	17.0lbs
