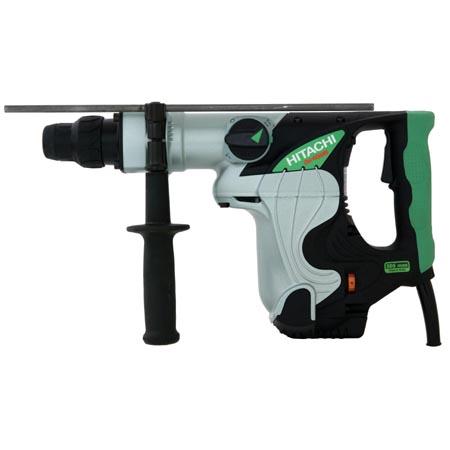

Metabo (Hitachi) DH40MR
Metabo (Hitachi) DH40MR
Rotary Hammer

Metabo (Hitachi) DH40MR

DH40MR 1-9/16" SDS Max Shank Rotary Hammer, 2-Mode

  • Fastest drilling speed in its class with low vibration and noise level
  • 7.4 ft-lbs of impact energy, delivering high-speed drilling and forcible chipping with low vibration and noise level
  • 9.2 Amp motor, increases productivity
  • 2-modes of operation, hammer only and hammer & drill for flexibility within a range of applications
  • Built-in electronic control circuit, keeps speed constant even as load varies
  • Needle-pin slip clutch, for higher slip torque accuracy and safety
  • Variable lock system, makes bit replacement simple and offers 12-angle positions for chiseling
  • Soft, non-slip Elastomer grip handle, absorbs vibration and improves comfort and handling
  • Revolutionary IDI (Internal Double Insulation) technology, incorporated into the housing of the tool greatly improves reliability and extends the tool life
  • Removable side handle with depth gauge, improves control and ensures accurate drilling depth

Includes

  • Depth gauge (971786)
  • Side Handle (313078)
  • Injection molded carrying case (322152)
  • Hex Bar Wrenches (943277, 944458, 944459)
  • Grease Packs (981840)

Specifications


Shank
SDS Max
Chuck Size
1-9/16"
No-Load Speed
240-480rpm
Impact Rate
1320-2650bpm
Impact Energy
7.4 ft/lbs
Amps
9.2
Capacity: Drill Bit
1-9/16"
Capacity: Core Bit
4-1/8"
Modes of Operation
Hammer/Hammer & Drill
Switch
VSR
Handle Type
D
Full Load Vibration
117db
No-Load Noise Level
79.5db
Power Input
950W
Tool Length
17-1/8"
Tool Weight
14.3lbs
