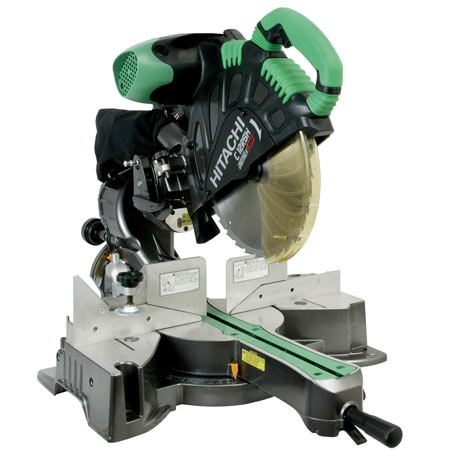

Metabo (Hitachi) C12RSH

C12RSH 12" Sliding Dual Compound Mitre Saw Featuring New Slide Technology



• Revolutionary compact slide system allows the saw head to slide along fixed rails, eliminating the need for rear clearance
• Exclusive laser marker system from Hitachi increases cutting accuracy
• Powerful 15 Amp motor with 1,850 Watts of max output power to tackle tough cutting jobs with ease
• Micro mitre and micro bevel adjustment knobs to dial-in to precise angles
• Large pivoting fence raises fence height to 4-11/16 inches to cut crown molding vertically
• 0-57 degree mitre angle to the right for flexibility with 0-46 degree mitre angle to the left
• 0-45 bevel angle range to the right and left allowing users to quickly and easily flip the saw blade and leave the material in place
• Positive stops on the mitre and bevel scale, for easy to read measurements and quick settings
• Carbon brush access, allows the user to replace the brush as needed to greatly prolong tool life
• Vertical handle with soft, vibration reducing elastomer grip adds comfort and control
• Compatible with the UU610 Universal Work Station from Hitachi

Includes

• 12 inch TCT Saw Blade (726100)
• Dust Bag (998845)
• Vice Assembly (324378)
• Box Wrench 17mm (985051)

Specifications

Amps	15
No-Load Speed	3,800 RPM
Blade Diameter	12"
Mitre Cutting Range	0-46 L; 0-57 R
Bevel Cutting Range	Left & Right 0-45
Digital Display	No
Laser Marker	Yes
Saw Blade Drive System	Poly V Belt & Gear
Splinter Guard	Provided (Fixed)
Tool Dimension WxDxH	23-7/16"x36-5/8"x27-15/16"
Tool Weight	64 lbs
Cutting Capacities (HxW), 90 Degree Cross Cut	4-3/16"x12-1/4" or 4-11/16"x10-3/16"
Cutting Capacities (HxW), 45 Degree Miter (L/R)	4-3/16"x8-5/8" or 4-11/16 x7-1/16"
Cutting Capacities (HxW), 45 Degree Bevel (L)	2-3/4"x12-1/4" or 2-151/16 x10-3/16"
Cutting Capacities (HxW), Compound Cut 45x45 (L/L)	2-3/4"x8-5/8" or 2-151/16"x7-1/16"
