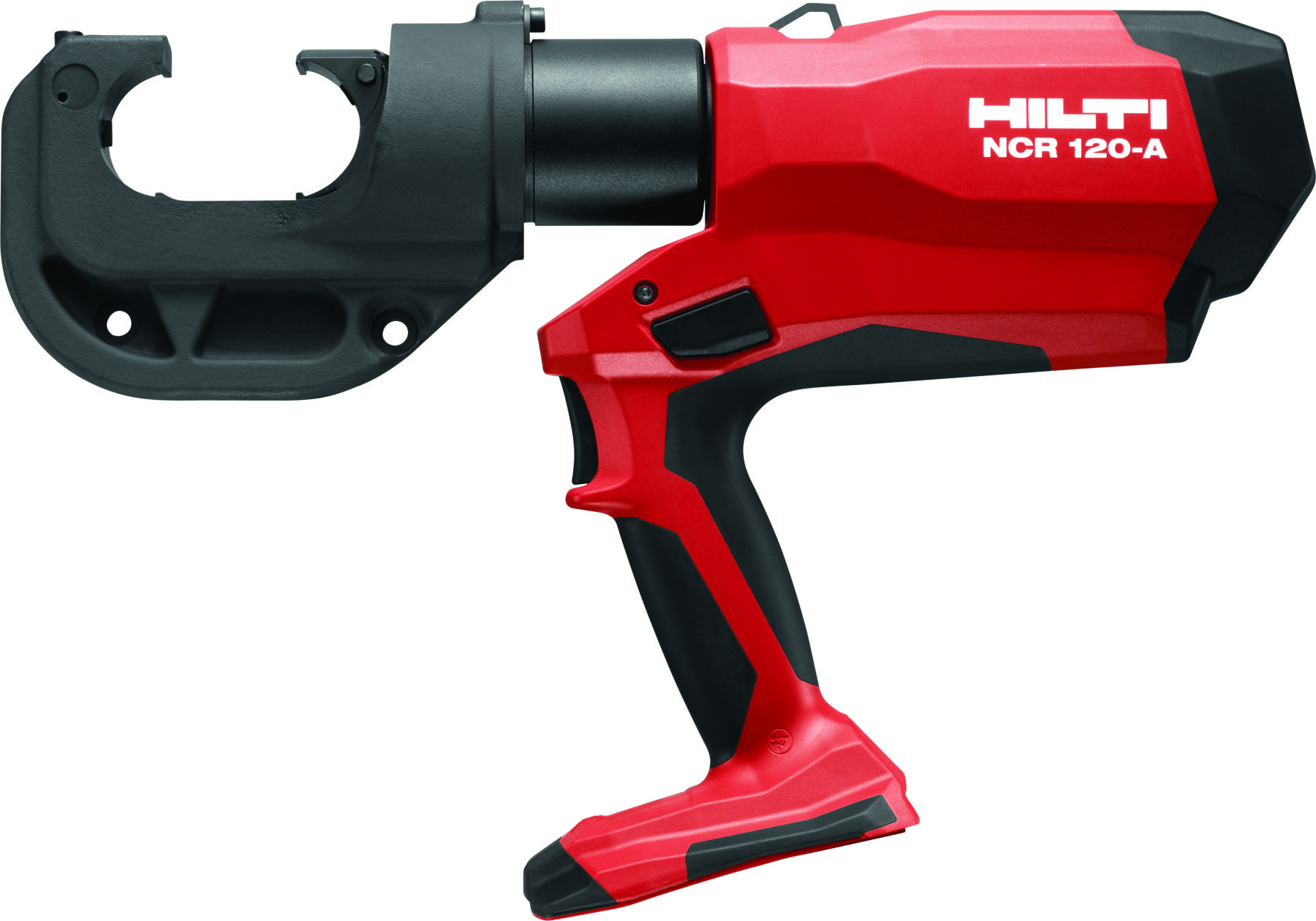

HILTI NCR 120-A

NCR 120-A PISTOL-GRIP 12T CRIMPER

Cordl. crimper NCR 120 PC-A22 #2195108

Pistol-grip 12T cordless crimper with crimping capacity up to 750 MCM (400 mm²)

• Dimensions (LxWxH): 16.4 x 3 x 13 in
• Crimping force: 108 kN
• Crimping capacity: 750 kcmil / 400 mm2



FEATURES & APPLICATIONS

Cordl. crimper NCR 120 PC-A22 #2195108

Features

• Compatible with all Hilti 22V batteries – one battery for all Hilti cordless hydraulic tools
• Accepts industry-standard 12 ton U-style crimping dies
• Pressure sensor – monitors crimping force and provides the operator a visual and audible alert if force is below specifications
• Jaws retract automatically after completion of the crimping operation

Applications

• Crimping copper and aluminum conductors up to 750 Kcmil (MCM)
• Crimping most common grounding connectors

Specifications:

Dimensions (LxWxH)	16.4 x 3 x 13 in
Crimping force	108 kN
Crimping capacity	750 kcmil / 400 mm2
Crimping capacity	750 MCM Cu, 750 MCM Al
For use with dies	NCR U AL, NCR U CU
Head rotation	350 °
