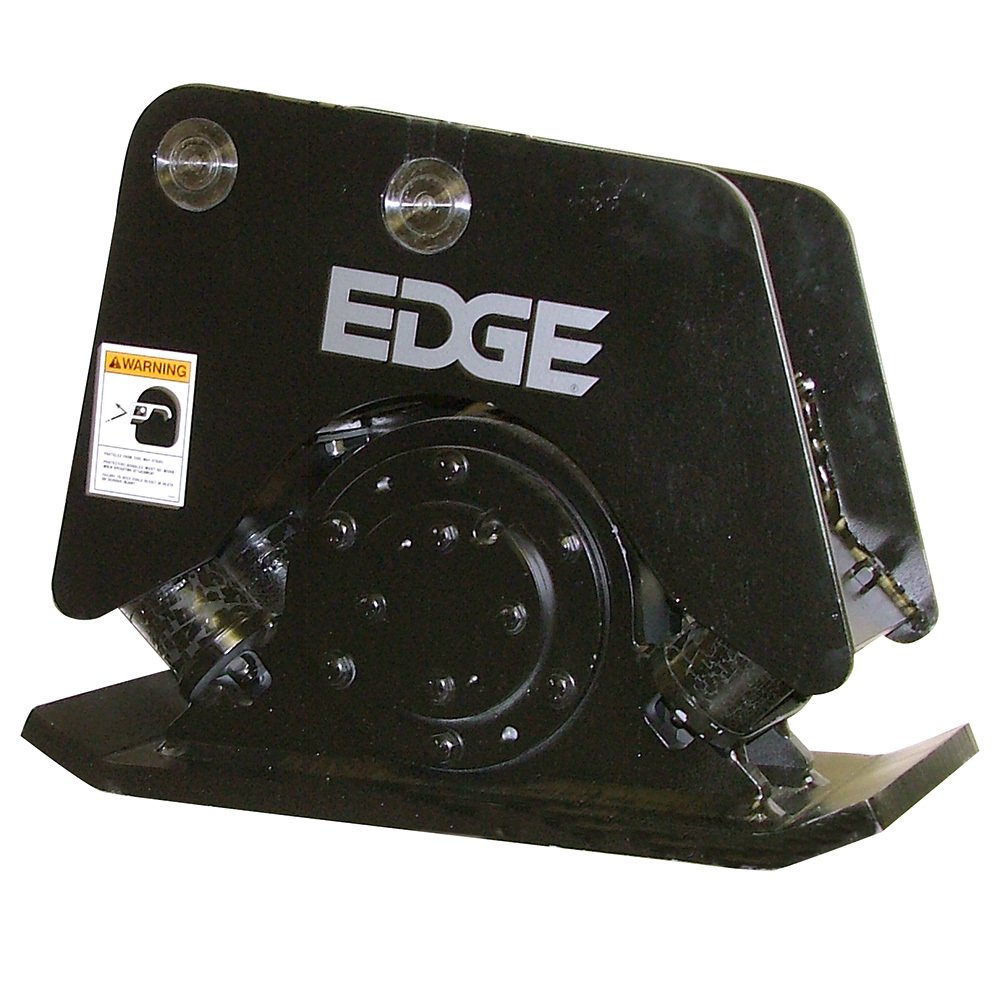

EDGE 50504118

EC35 Compaction Plate for Gehl Z17 & Mustang 170Z Excavator with or without Quick Attach

Maximize the efficiency of your compact excavator with the EDGE Compaction Plate. EDGE compaction plates can be used anywhere a boom can reach; in trenches, around foundations, on slopes or seawalls. Compaction plates can safely compact trenches, often eliminating the extra cost involved with a walk-behind unit and the added expense of trench boxes or shoring. EDGE compaction plates are also ideal for driving steel sheeting used for retaining walls.

Technical Specifications:

• Mount: Gehl/Mustang
• Model: EC35
• Hyd. Req. (gpm/lpm): 7.5/28
• Hyd. Req. (psi/bar): 2000/138
• Impulse Force (lbs/kg): 3000/1361
• Base Plate Size (in/mm): 12x26/305x660
• Wt. (lbs):
• 310

Click here for Specification Sheet
