EDGE 503526

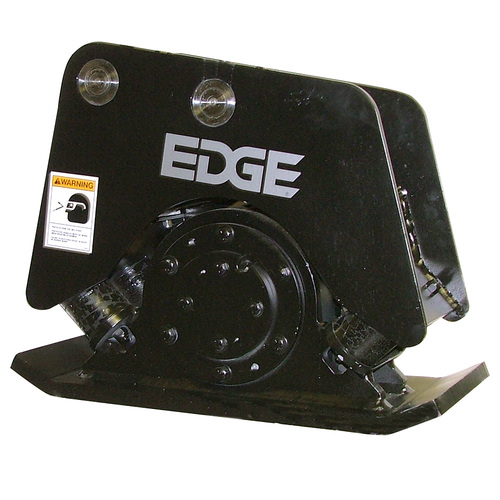

EC65 Compaction Plate for Komatsu PC45MR2, PC45MR3, PC45-3, PC55 Excavator

Maximize the efficiency of your compact excavator with the EDGE Compaction Plate. EDGE compaction plates can be used anywhere a boom can reach; in trenches, around foundations, on slopes or seawalls. Compaction plates can safely compact trenches, often eliminating the extra cost involved with a walk-behind unit and the added expense of trench boxes or shoring. EDGE compaction plates are also ideal for driving steel sheeting used for retaining walls.

Technical Specifications:

• Mount: Komatsu
• Model: EC65
• Hyd. Req. (gpm/lpm): 12-15/45-57
• Hyd. Req. (psi/bar): 1800-2200/124-152
• Impulse Force (lbs/kg): 6500/2948
• Base Plate Size (in/mm): 24x34/610x864
• Wt. (lbs):
• 825

Click here for Specification Sheet
