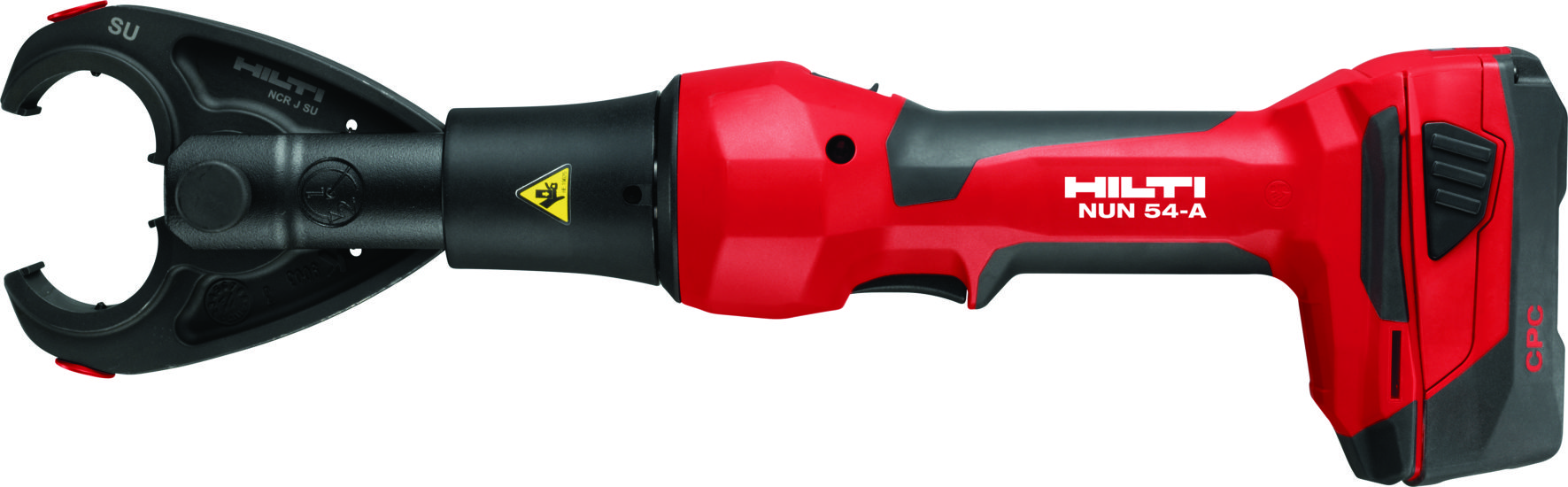

HILTI NUN 54-A

NUN 54-A UNIVERSAL CRIMPER AND CUTTER FOR ELECTRICIANS

Inline universal 6T cordless crimper with interchangeable crimping and cutting jaws

• Dimensions (LxWxH): 14.6 x 3 x 4.7 in
• Crimping force: 53 kN
• Crimping capacity: 600 kcmil / 300 mm2 Cu, 350 kcmil / 300 mm2 Al



Features

• One tool for all interchangeable jaws
• Fast-acting jaws for higher productivity
• Jaws retract automatically after completion of the crimping and cutting operation
• Compact and light inline tool for easier access and maneuverability
• Long-lasting, replaceable Cu/Al cutting blades

Applications

• Crimping copper conductors up to 600 MCM
• Crimping aluminum conductors up to 350 MCM
• Cutting copper conductors up to 600 MCM
• Cutting aluminum conductors up to 750 MCM

Specifications:

Dimensions (LxWxH)	14.6 x 3 x 4.7 in
Crimping force	53 kN
Crimping capacity	600 kcmil / 300 mm2 Cu, 350 kcmil / 300 mm2 Al
Crimping capacity	600 kcmil Cu• 350 kcmil Al
For use with jaws	NCR J D3, NCR J SU, NCR J D3BG, NCR J D3O, NCT J ACSR, NCT J CUAL
For use with dies	NCR SU AL, NCR SU CU
Head rotation	350 °
Approx. cycle time	4 s
