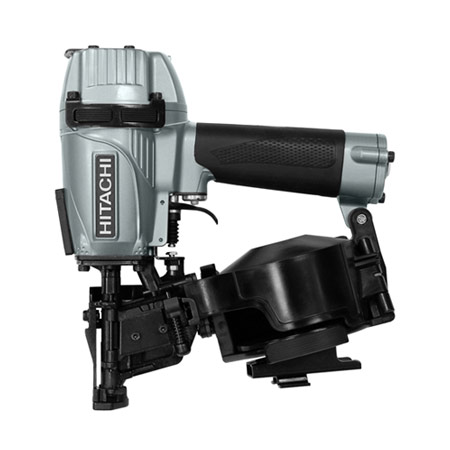

Metabo (Hitachi) NV45AE

NV45AE 1-3/4" Roofing Coil Nailer



• Pneumatic nail feed mechanism powers both the nail advance and return for consistent operation even in the harshest of conditions
• Consumes 30% less air allowing for more productivity time per compressor cycle
• 30% faster bump firing speed for a rapid finish
• 30% less recoil for optimized kick back to propel nailer across the course
• Constructed with all aluminum components for durability
• Patented and improved push lever design has integrated holes to expel excess tar and grime build-up
• Two-piece push lever lower segment can be easily removed for maintenance or replacement
• Three-point carbide insert on nose piece increases life and reduces wear
• Improved rubber composite guard wraps the side-edge of the magazine and critical points on the tool body to endure harsh working conditions
• Non-slip texture keeps tool from sliding down a pitched roof
• Side loading magazine allows for quick and easy nail replenishment (bottom load option available, NV45AE(S)
• Last nail magnet holder holds the final nail in the coil in place to prevent loss or misfired nails
• Tool-less depth of drive dial can be adjusted on the spot to meet the application for ultimate convenience
• Patented elastomer composite material covers the grip for a secure hold
• Ergonomic design and exceptional tool balance not only reduces user fatigue and repetitive injuries, but also provides more control during use
• Accepts 7/8" - 1-3/4" fasteners with wire coil collation
• 5.5 lbs, lightweight for easy maneuverability

Includes

• Safety Glasses (875769)
• Hex. bar wrench for M4 screw (943277)
• Hex. bar wrench for M5 screw (944458)

Specifications

Fastener Type	Coil, Wire Collation
Fastener Length Capacity	7/8" – 1-3/4"
Fastener Diameter Capacity	120
Magazine Capacity	120
Magazine Loading	Top/Side
Operating Pressure	70-120 psi
Driving System	Cylinder Valve
Nail Feed System	Air
Depth-setting	Tool-less
L x W x H	9-27/32" x 5-1/64" x 10-3/8"
Weight	5.5 lbs
