EDGE 50504127

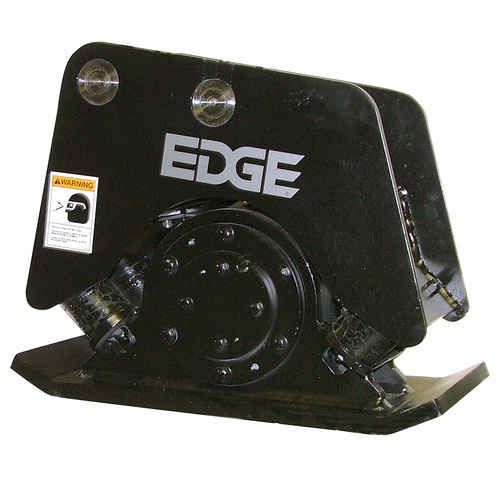

EC75 Compaction Plate for Gehl Z55, Z80 & Mustang 550Z, 800Z Excavator with OEM Quick Attach

Maximize the efficiency of your compact excavator with the EDGE Compaction Plate. EDGE compaction plates can be used anywhere a boom can reach; in trenches, around foundations, on slopes or seawalls. Compaction plates can safely compact trenches, often eliminating the extra cost involved with a walk-behind unit and the added expense of trench boxes or shoring. EDGE compaction plates are also ideal for driving steel sheeting used for retaining walls.

Technical Specifications:

• Mount: Gehl/Mustang
• Model: EC75
• Hyd. Req. (gpm/lpm): 18-22/68-83
• Hyd. Req. (psi/bar): 1800-2200/124-152
• Impulse Force (lbs/kg): 7800/3538
• Base Plate Size (in/mm): 24x34/610x864
• Wt. (lbs):
• 850

Click here for Specification Sheet
