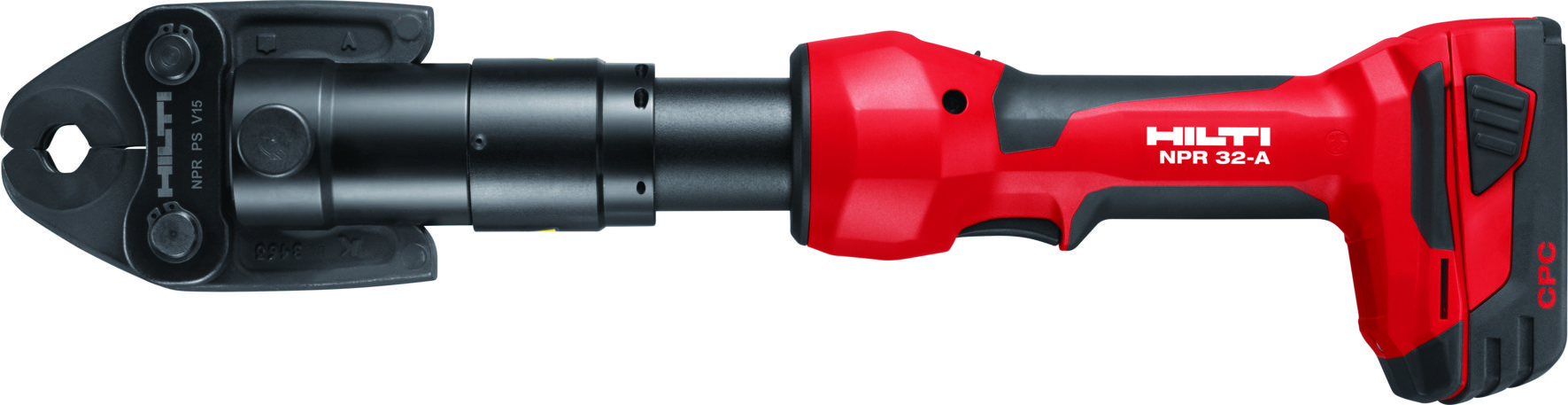

HILTI NPR 32-A PIPE PRESS TOOL

NPR 32-A PIPE PRESS TOOL

Cordless press tool NPR 032 IE-A22 BULK #2207155

Versatile 22V cordless press tool for metal pipes up to 108 mm and plastic pipes up to 110 mm

• Press force: 32 kN
• Pressing capacity metal pipes: 108 mm
• Pressing capacity plastic pipes: 110 mm



Features

• Rotating head – 350 degree rotation to allow for access in many applications
• Safety locking pin – can only be closed in correct position
• Automatic jaw retraction – returns to initial position once press operation is completed
• Pressure sensor – tool does not retract unless the right pressure has been achieved
• Safety warnings – audio-visual signals to warn the operator in case something went wrong

Applications

• Pressing range up to 54 mm for steel pipes*
• Pressing range up to 108 mm for copper pipes*
• Pressing range up to 110 mm for plastic pipes*
• *These values are system dependent. In order to ensure correct and safe pressing, consult the original instruction manual from the system supplier

Specifications:

Press force	32 kN
Pressing capacity metal pipes	108 mm
Pressing capacity plastic pipes	110 mm
Head rotation	350 °
Dimensions (LxWxH)	16.1 x 3 x 4.7 in
Service interval	15.000 cycles or 1 year
