Vermeer BC700XL

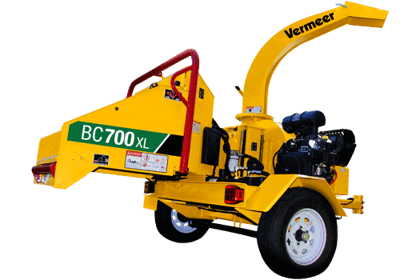

2025 Vermeer BC700XL Brush Chipper

Vermeer continues to respond to the demands of the rental, landscape and tree care professionals with the BC700XL brush chipper. The smallest machine in the Vermeer brush chipper line, the BC700XL design is based on operator feedback and focuses on productivity advantage and ease of use. The brush chipper features a centrifugal clutch system, 25 hp (18.6 kW) Kohler EFI engine, bottom feed stop bar and Vermeer-exclusive SmartFeed feed-sensing control system. The new member of the chippers line offers the compact size operators are looking for and the performance they want to achieve a job efficiently.

Dimensions
Tongue Weight - Engine Option One	180 lbs (81.6 kg)
Length - Table Down, Tongue Extended	136 in (345.4 cm)
Weight - Engine Option One	1800 lbs (816.5 kg)
Height	102 in (259.1 cm)
Width	71 in (180.3 cm)
Length - Feed Table Up, Tongue In	115 in (292.1 cm)

Operational
Feed Roller Dimension	10" Diameter
Motor Manufacturer	White Hydraulics
Bedknife Size	4" x 8.6"/(10.2 cm x 21.9 cm) hor; 4" x 5.8"/(10.2 cm x 14.6 cm) vert
Feed Roller Orientation	Horizontal
Weight With Shaft	176 lbs (79.8 kg)
Air Flow	5000 cfm
Thickness	1.3 in (3.2 cm)
Diameter	2 in (5.1 cm)
Feed Roller Clamp Type	Spring/Feed Roller Weight
Pinch Point - Distance to End of Feed Table	65.4 in (166.1 cm)
Fixture Method	Welded
Motor Displacement	14
Infeed Hopper Height	22.1 in (56.1 cm)
Feed Roller Minimum Distance to Drum	4 in (10.2 cm)
Weight of Feed Roller	100 lbs (45.4 kg)
Infeed Table Length	30.2 in (76.7 cm)
Infeed Throat Capacity	6" x 8" (15.24 cm x 20.32 cm)
Feed Speed	49.4 ft/min
Infeed Table Width	41.2 in (104.6 cm)
Speed	1748
Replaceable Threaded Knife Block	Yes
Distance from Feed Table to Ground	28.1 in (71.4 cm)
Feed Roller Clamp Load	525 lbs (238.1 kg)
Four Position Feed Control Bar	Standard
Bottom Feed Stop Bar	Standard
Green Hold to Run Button	Standard
Filtration Method	Return flow filtration, 10 micron
System relief pressure	2500 psi (172.4 bar)
Tank capacity	6.8 gal (25.7 L)
Recommended Oil Type	Vermeer VMF Gold
Width	8 in (20.3 cm)
System Type	Open center
Fender Description	.1"/(.3 cm) Steel bolt-on
Hitch Type	2"/(5.1 cm) ball coupler
Frame Description	3/16"/(.5 cm) ASTM A1011 steel
Manufacturer - Option Two	Dexter
Capacity - Option Two	2000 lb/(907.2 kg)
Axle/Suspension - Option Two	2000lb/(907.2 kg) rubber torsion axle with electric brakes
Tires - Option One	ST185/80D13 load range D
Axle/Suspension	2000 lb/(907.2 kg) rubber torsion axle
Capacity - Option One	2000 lb/(907.2 kg)
Manufacturer - Option One	Dexter
Type - Option One	Rubber Torsional
Wheels - Option One	13 x 5, bolt circle 5 on 4.5
Type - Option Two	Rubber torsional, braked
Pump Flow at Maximum RPM	3.8 gpm (14.4 L/min)
Rotation Type	Manual
Rotational Lock	Standard Latch
Chute Rotation Angle	240 deg
Deflector Thickness	.1 in (.2 cm)
Chute Height	97.2 in (246.8 cm)
Side Wall Thickness	.1 in (.3 cm)
Bottom Thickness	.1 in (.3 cm)
Top Thickness	.1 in (.3 cm)
Trailer Light Type	LED
Brake Type	Electric optional
Reset Method	Dual green hold-to-run buttons
Bottom Feed Stop Bar Diameter	2 in (5.1 cm)
Material Thickness	.1 in (.3 cm)
Positions	Four position: (E-Stop), Forward, Stop, (Reverse)
Bottom Feed Stop Bar Material Thickness	12" (30.48 cm)
Bedknife Material	ASTM A572 Grade 50
Material Capacity	6 in (15.2 cm)
Knife Thickness	.6 in (1.6 cm)
Material	A8 Chipper Steel
